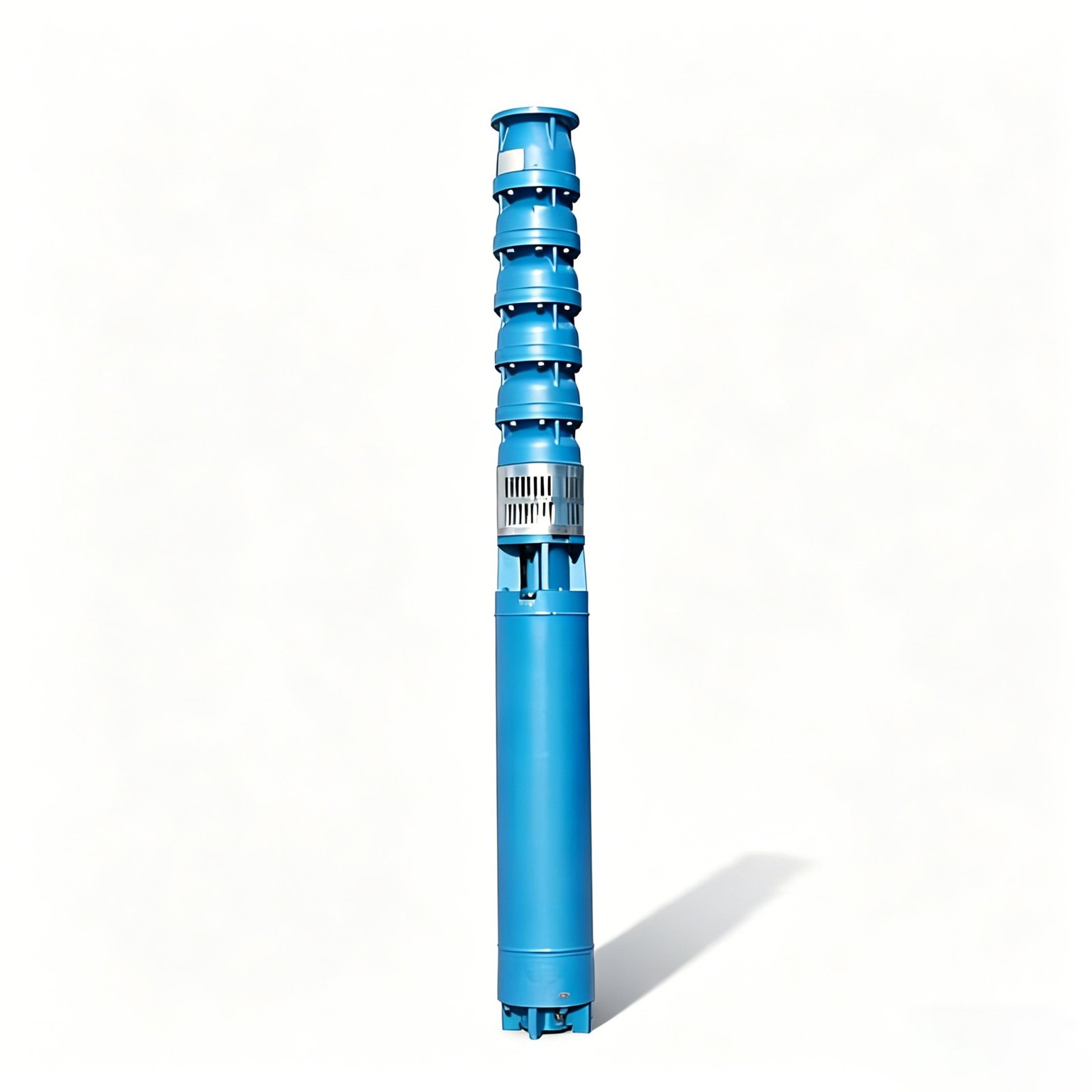

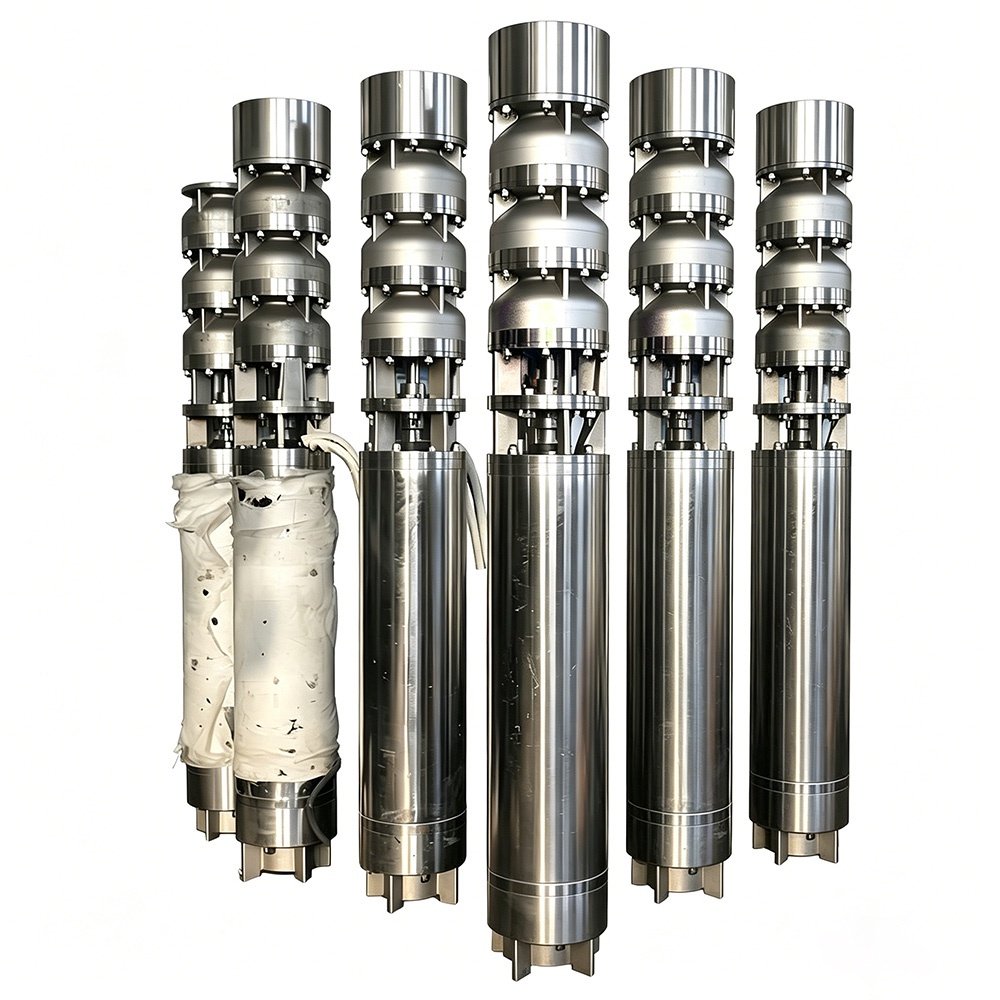

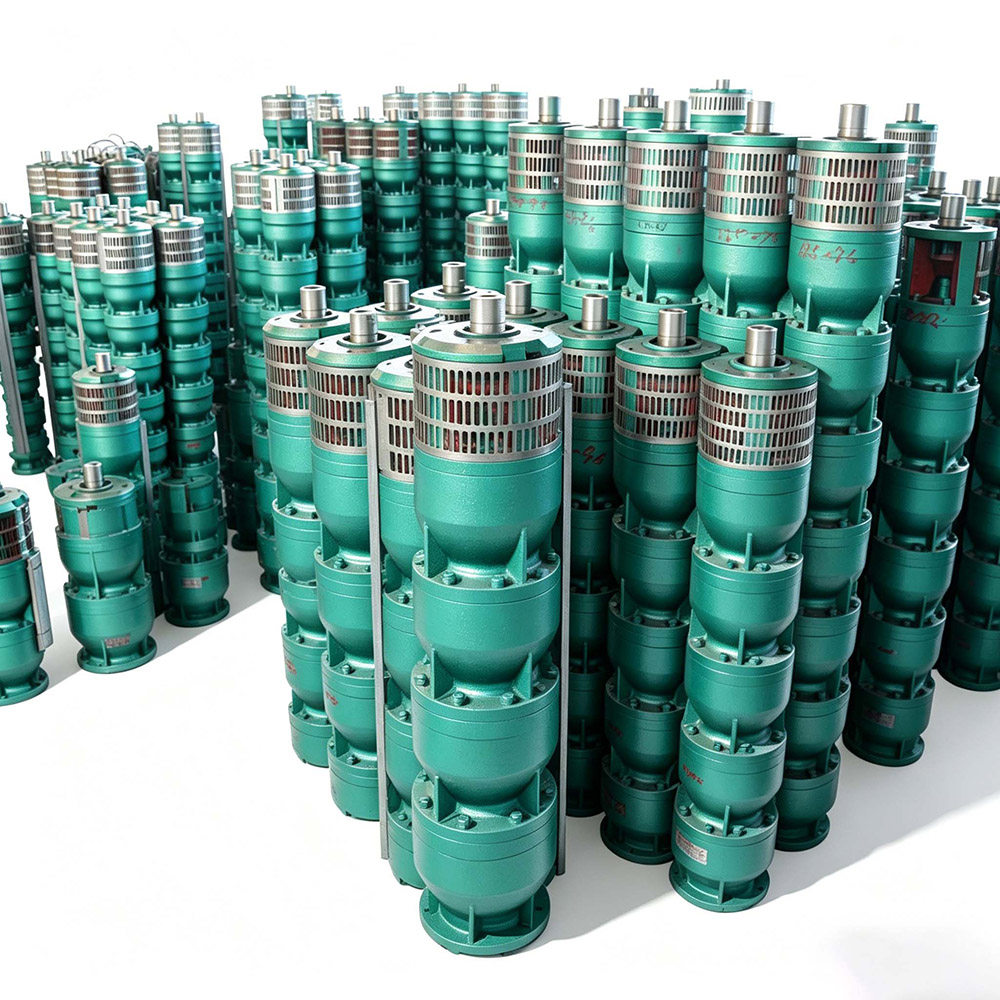

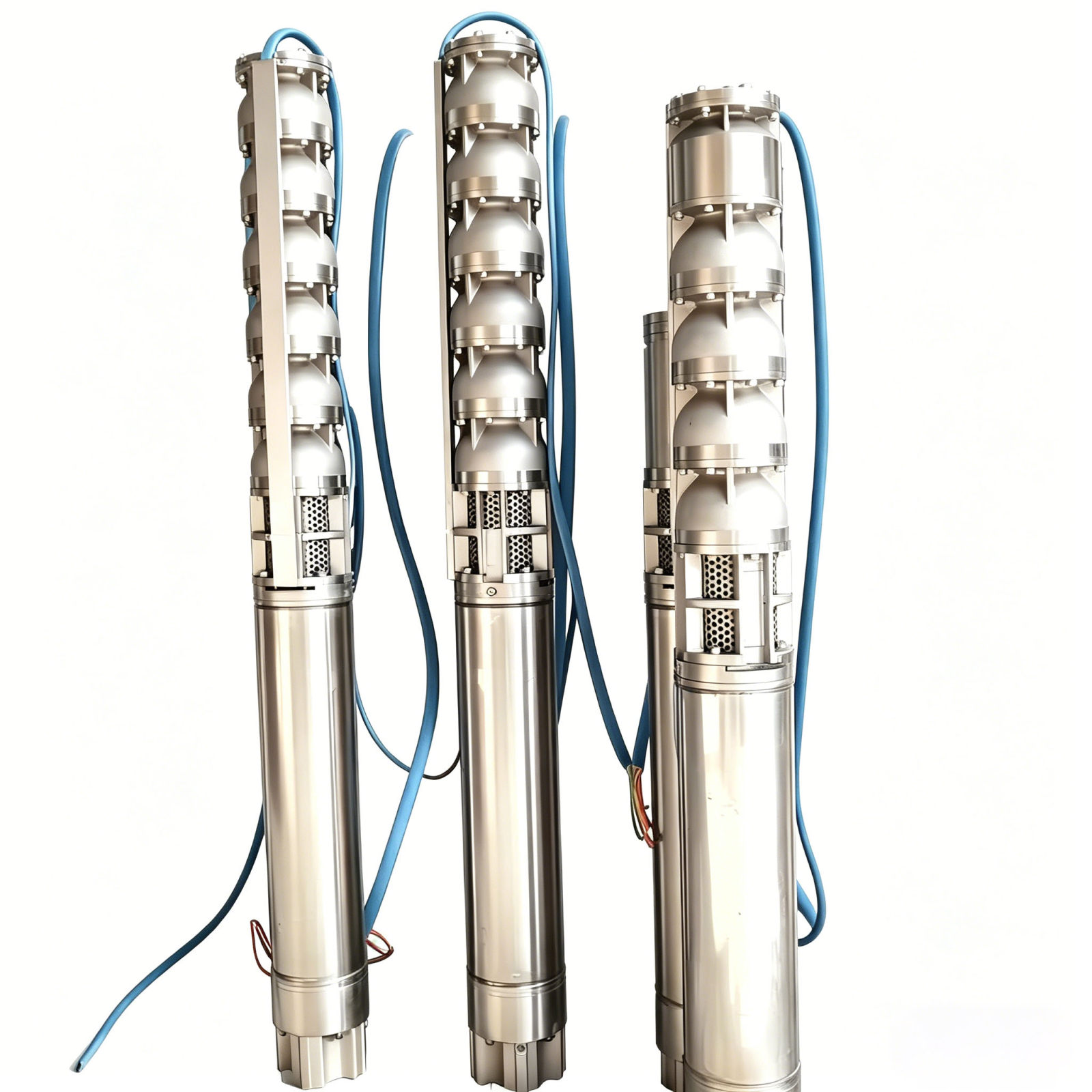

KQJ(R) series submersible bore hole turbine pump is ideal energy-saving product which designed according to National standard or NEMA standard. It is the main equipment lifting water from deep well, pond, reservoir and so on. KQJ(R) submersible pump set may be vertical installation or horizontal installation. it is consisted of KQJ(R) submersible pump and KYQS submersible bore hole motor, the pump and motor connected by a rigid coupling. Widely used in farm irrigation, water supply-drainage system for factory, mines, municipal engineering and so on. Complete unit is installed underground or ground resulting in space-saving, quiet operation. Long life / low maintenance – no lubrication, alignment.

Product Features

- Efficiency with wide range hydraulic coverage.

- May using special material for abrasion resistance

- Low noise

- Cost effective well pump option

- Rugged robust operation

- Vertical or horizontal installation

- Shell casting for bowl with nice outlooking.

Main Parts Material:

- Bowl : Cast iron with epoxy coating

                 Ductile cast iron with epoxy coating

                 Stainless Steel

                 Duplex Stainless Steel

                 Bronze

- Impeller: Cast iron

                        Ductile cast iron

                        Stainless steel

                        Duplex Stainless Steel

                        Bronze

- Shaft: Stainless Steel 420

                 Duplex Stainless 2205

- Bearing: Rubber

                      Rubber with steel frame

                      Thordon

                      Bronze
