KVT series line shaft vertical turbine pumps are ideal for water pit, open sump, or deep well pumping. Line shaft vertical turbines are configured such that the hydraulic components are submerged into the pumped fluid while the motor or gear box is located above ground, making it easy to access electrical components, and dry type motor with more reliable than submersible motor.
Line shaft vertical turbine pumps using series of high-performance rotating impellers and smooth channel bowl, these pumps convert velocity into pressure to deliver smooth, continuous flow with high efficiency from deep-well extraction to surface transfer.
Line shaft vertical turbines are commonly used in all types of applications, from moving process water in industrial plants to providing cooling water for cooling towers at power plants, from pumping raw water for irrigation, to boosting water pressure in municipal pumping systems, to fire fighting system, and for virtually every other imaginable pumping application.
Product Features
- Efficiency with wide range hydraulic coverage.
- May using special material for abrasion resistance
- Rugged robust operation
- Shell casting for bowl with nice outlooking.
- Capacity up to 2000M3/H
- Head up to 350M
- Discharge elbow from 4 Inch to 14 Inch. Ductile Cast Iron or Steel Fabricated
- Threaded or Flanged Column Construction
- Thrust bearing: Grease lubrication or Oil lubrication or submerged in water (only for clean water without solid)

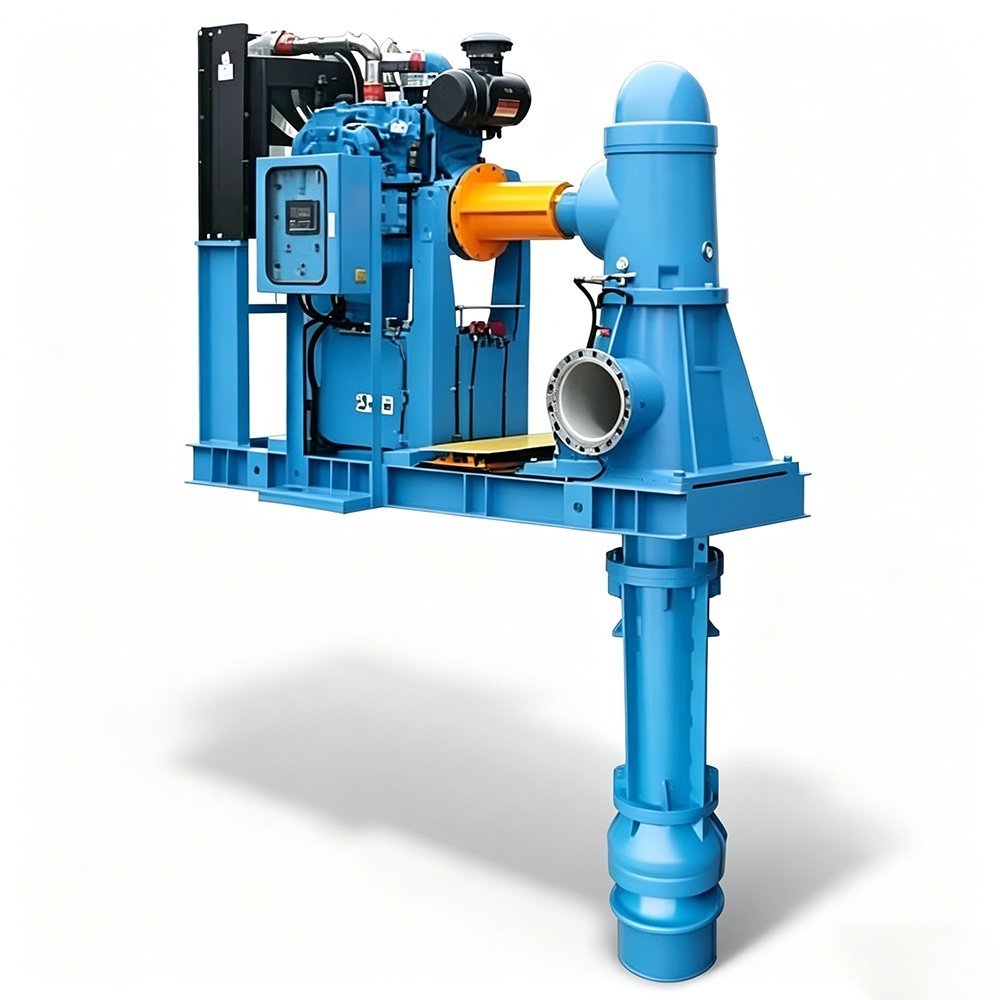

- Driving: Hollow shaft motor or Solid shaft moto or Right angle gear box with Diesel.
Main Parts Material:
- Bowl : Cast iron with epoxy coating
Ductile cast iron with epoxy coating
Stainless Steel
Duplex Stainless Steel
Bronze
- Impeller: Cast iron
Ductile cast iron
Stainless steel
Duplex Stainless Steel
Bronze
Shaft: Stainless Steel 420
Duplex Stainless 2205
Bearing: Rubber
Rubber with steel frame
Thordon
Bronze
